When creating your own libraries you may want to reference data files that are used within your model. However when another user installs your library they might install it in a different location so any links referencing the data files have to be done in such a way that they will work independently of where the library is installed.

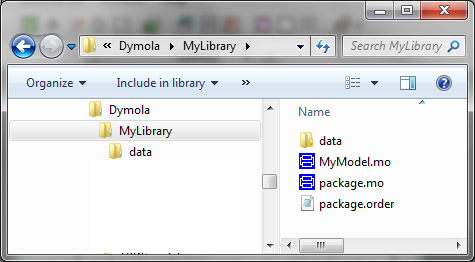

Below is an example of a user defined library were data files are stored in the same directory as the library:

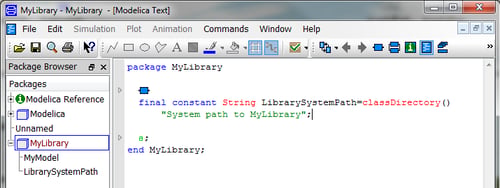

Dymola contains a built in function called classDirectory() that returns the current directory where this function is called from. This function can be used to create a string within your library that refers to the directory where the library is installed. An example of this is given below:

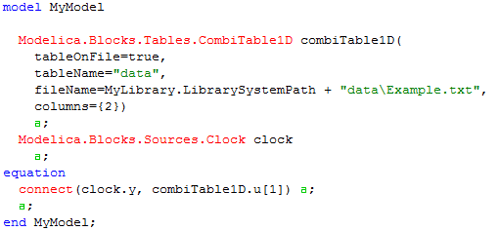

To use this constant string just reference it in a model as in the example below:
In the example above a clock is connected to a combiTable block. The table used in the combitable is stored in the data directory.
